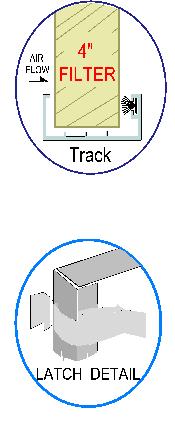

Filter Track and Latch Detail
1.  AirTracks “C4″ Side-Lok Filter Housing is used for side access applications for a MERV 8-15, 4” pre-filter.2.  The latch-down door compresses the filters together to ensure a tight seal.

3.  Designed for factory gasketed filters for side-to-side sealing.

4.  16 Guage galvanized construction.

5.  Extruded aluminum filter tracks with woven nylon pile seals provide a seal on downstream side of the filter.

6.  Metal-to-metal components sealed with silicone sealant.

7.  The door uses aluminum hinges and quick acting snap down plated latch.

8.  Door sealed with two pound density urethane foam.
