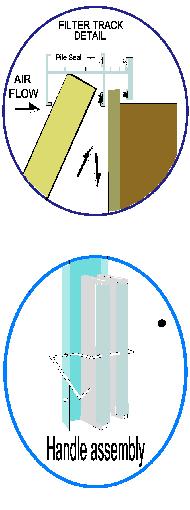

Filter Track Detail and Handle Assembly
1.  AirTracks “Handle-Lok” is used for “Built-Up Bank” applications for 2″ thick pre-filter and headered final filter.2.  The handle assembly compresses to allow for easy filter access and then expands to minimize filter bypass.3.  Designed for “Front/Rear” loading of factory gasketed filters.

4.  Framing members are constructed of 6063 mill finish aluminum.

5.  Extruded aluminum filter tracks with woven nylon pile seals provide a downstream seal for the filters.  (.09″ minimum thickness)

6.  Framing members are cut and drilled for easy field assembly.

7.  The handle assembly utilizes spring metal and fast acting expanding gasket to minimize air bypass
