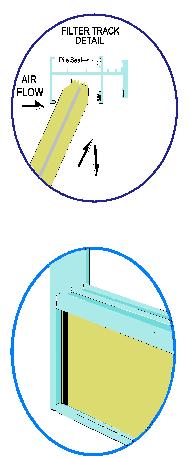

Filter Track Detail
1.  AirTracks “Link-Lok” is used for build-up bank applications for 2″ thick link filters.

2.  The Link filter is a continuous filter that compresses itself to the top and bottom tracks as well as the side channels which minimizes filter bypass.

3.  Designed for “Front and Rear” loading.

4.  Framing members constructed of 6063 mill finish aluminum.

5.  Extruded aluminum filter tracks with woven nylon pile seals provide a downstream seal for the filters.  (.09″ minimum thickness)

6.  Framing members are cut and drilled for easy field assembly.
